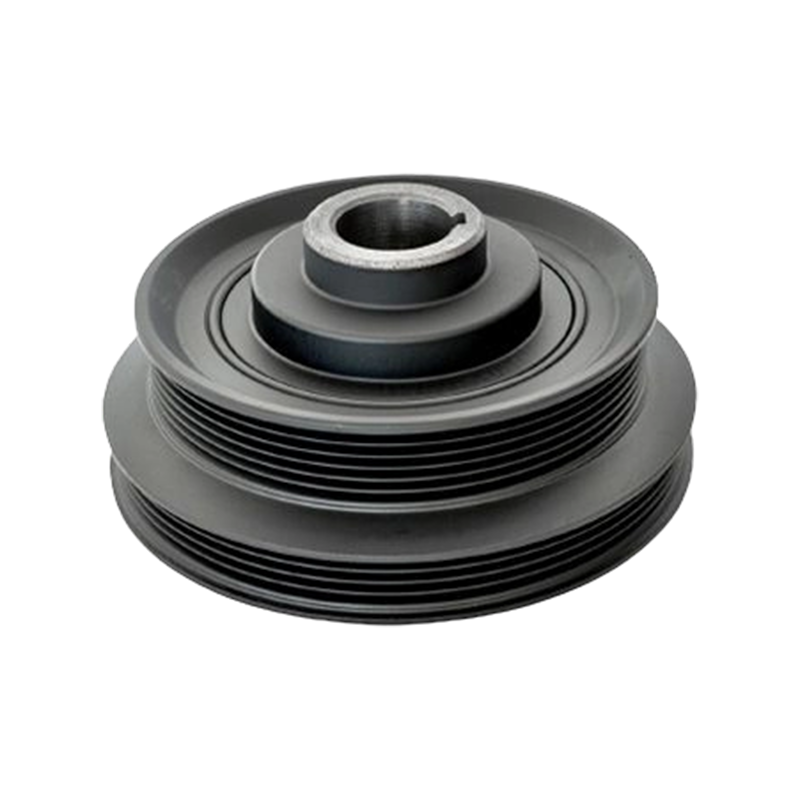

The wheel hub blank is the direct connection carrier between the pulley and the crankshaft. After processing, the blank will have mounting holes and locating keyways that precisely match the output end of the crankshaft, ensuring that the pulley and crankshaft rotate synchronously without slippage or eccentricity.
The crankshaft damper pulley hub blank serves as the primary interface between the engine's crankshaft and the accessory drive system. Manufactured via the green sand casting process using HT250 (Grey Iron), this blank provides the structural integrity required for precise machining of mounting bores and keyways. Once finished, it ensures synchronized rotation between the pulley and the crankshaft, effectively preventing slippage and maintaining concentricity under high-speed operation.
Core Strengths
Structural Stability: The HT250 material offers low notch sensitivity, preserving critical tolerances of the mounting interface under cyclic loading.
Damping Capacity: The flake graphite microstructure inherent in grey iron naturally dissipates torsional vibrations generated by the engine.
Machinability: Uniform casting hardness (180-240 HB) extends tool life during high-precision CNC machining operations.
Technical Features
Material Specification: Compliant with GB/T 9439 HT250 (Equivalent to ASTM A48 Grade 35).
Casting Process: Automated green sand molding line ensures consistent wall thickness and surface finish.
Microstructure: High pearlite content provides the tensile strength necessary to withstand engine torque outputs.
Applications
Engineered for internal combustion engines across various platforms:
Commercial Vehicles (MPV/LCV): For consistent long-term power transmission.
Heavy-Duty Trucks: Capable of managing the high torque requirements of large-displacement engines.
Industrial Engine Systems: Ensures reliable coupling in construction and off-road machinery.
FAQ & Technical Solutions
Issue: Internal porosity affecting the structural integrity of the keyway.
Solution: Precise moisture control in the sand mix and optimized venting systems minimize gas-related defects.
Issue: Hard spots causing tool wear or eccentricity during boring.
Solution: Controlled cooling rates and constant pouring temperatures ensure a uniform pearlitic structure for consistent machinability.
HT250 (GB/T 9439)
(ASTM A48 Grade 250)
| Standard Code | Standard Name | Corresponding Grade |
| ISO 1083 | Ductile Iron Grade System | JS/500-7 |
| EN 1563 | European Ductile Iron Standard | EN-GJS-500-7 |
| DIN 1693 | German Ductile Iron Standard | GGG50 |
| JIS G5502 | Japanese Ductile Iron Standard | FCD500/FCD500-7 |
| ASTM A536 | American Ductile Iron Standard | 80-55-06 (Partial Correspondence) |
| Standard Code | Standard Name | Corresponding Grade |
| ISO 1083 | International Ductile Iron Standard | 450-10 |
| EN 1563 | European Ductile Iron Standard | EN-GJS-450-10 |
| JIS G5502 | Japanese Ductile Iron Standard | FCD450-10 |
| ASTM A536 | American Ductile Iron Standard | 65-45-12 (Approximate Correspondence) |
| GOST 7293 | Russian Ductile Iron Standard | В445 (VCh45) |
| KS D 4307 | Korean Ductile Iron Standard | GCD450 |
Anhui Shixuan Machinery Technology Co., Ltd. was founded in March 2016 and is located at Meicun Road, Heli Park, Ningguo Economic and Technological Development Zone, Anhui Province. With an investment of over 50 million yuan, the company covers an area of 26 mu and has a factory building of more than 18,000 square meters. We are China Crankshaft damper pulley hub blank - Green Sand Casting - ASTM A48 Grade 250 Suppliers and Wholesale Crankshaft damper pulley hub blank - Green Sand Casting - ASTM A48 Grade 250 Exporter.
Since its establishment, the company has focused on technological innovation, aiming for industry leadership, and prioritized R&D investment and talent development. It has established an engineering technology R&D center with strong independent R&D capabilities. Equipped with a professional R&D team, the company provides specialized mold design and manufacturing for products tailored to each customer's requirements. The casting process adopts green sand and resin sand molding, producing various types of gray iron castings, ductile iron castings, and alloy castings. With an annual production capacity of over 100,000 tons, the company can manufacture products ranging from 0.5 kg to 80 kg. Its main products include auto parts, valve components (steam traps, steam valves), air compressor parts, hydraulic cylinders, and textile machinery parts. To better serve customers, the company also has a precision machining workshop equipped with CNC machining centers, CNC lathes, automatic multi-axis drilling machines, and automatic cleaning machines.
As an emerging casting manufacturer, the company boasts a high starting point and ambitious goals. Adhering to the principle of quality first and treating customers with integrity, its products are sold both domestically and internationally. Backed by advanced production equipment, superior product quality, and a strong corporate reputation, the company's products are marketed in Jiangsu, Zhejiang, Shanghai, and other regions, as well as exported to the United States (Watson McDaniel), the United Kingdom (Spirax Sarco), Argentina, and many other countries and regions. They have long been favored by customers for their stable quality and excellent performance.
The company has passed ISO14001:2015, ISO45001:2018, IATF16949:2016, and PED certifications, ensuring product quality, safety, and environmental management. In 2022, it was recognized as a "Xuancheng City Internet Demonstration Enterprise".
Authentic reliable quality naturally stands out and fears no comparison.
Selecting the right material for industrial components plays a critical role in ensuring performance, durability, and cost efficiency. Among various engineering materials, ductile iron castings are widely used due to their excellent strength, wear resistance, and versatility. However, choosing the r...
READ MOREWhy Green Mold Casting Dominates Foundries Green mold casting is not an eco-friendly color option but a high-efficiency, low-cost sand casting process where the mold is used in its unbaked, “green” state. Its key advantages—rapid production cycles (up to 300 molds per hour) and excellent collapsibi...
READ MOREGreen sand casting has remained one of the most trusted manufacturing processes for producing gray and ductile iron castings across industrial applications. Its long-standing use is not based on tradition alone. The process consistently delivers the flexibility, precision, and efficiency required fo...
READ MOREIn a crankshaft damper pulley hub, the keyway is the primary area of stress concentration. Failure to optimize the sand mold properties in this specific region can lead to coarse grain structures or micro-porosity, reducing the hub's shear resistance. Enhancing the mechanical properties of the keyway depends on optimizing the green sand ratio to improve thermal conductivity and mold rigidity, which in turn refines the pearlite matrix of the casting.
Anhui Shixuan Machinery Technology Co., Ltd. utilizes its advanced engineering technology R&D center to develop high-performance sand formulas. By precisely adjusting the ratio of bentonite, coal dust, and new sand within our 18,000-square-meter facility, we ensure that every Crankshaft Damper Pulley Hub Blank - Green Sand Casting possesses the structural density required for high-torque automotive applications.
The following table demonstrates the performance differences achieved through the specialized ratio management at Anhui Shixuan Machinery Technology Co., Ltd.:
| Sand Property | General Industry Ratio | Shixuan Optimized Ratio | Impact on Hub Keyways |
| Effective Bentonite (%) | 7.0 - 8.5 | 9.5 - 11.0 | Higher mold stability and sharper keyway edges |
| Wet Compressive Strength | 130 - 150 kPa | 190 - 230 kPa | Prevents sand wash in narrow keyway slots |
| Thermal Conductivity | Standard | Enhanced (Additives) | Refines grain size for 15% higher shear strength |
| Compactibility (%) | 45 - 50 | 34 - 40 | Improves gas venting and surface smoothness |
| Nodule Count (Ductile Iron) | Standard | 20% Higher | Improves fatigue life under alternating loads |
A1: Consistency is guaranteed through digital integration. As a "Xuancheng City Internet Demonstration Enterprise," Anhui Shixuan Machinery Technology Co., Ltd. uses online monitoring systems to track sand moisture and temperature in real-time. This data-driven approach, combined with our IATF16949:2016 certification, ensures that every hub blank delivered to markets like the USA and UK meets the exact mechanical specifications required for high-performance engines.
A2: Yes, we offer an integrated "Casting + Machining" service. Anhui Shixuan Machinery Technology Co., Ltd. operates a specialized precision machining workshop equipped with CNC machining centers, CNC lathes, and automatic multi-axis drilling machines. This allows us to take a raw hub blank (0.5 kg to 80 kg) and perform precision broaching of keyways and dynamic balancing, serving global clients like Watson McDaniel and Spirax Sarco with assembly-ready parts.
A3: We prioritize technological innovation and talent development. Anhui Shixuan Machinery Technology Co., Ltd. has established an engineering technology R&D center with strong independent R&D capabilities. Our professional team provides specialized mold design and manufacturing tailored to each customer's specific requirements. Since our founding in 2016 with an investment of over 50 million yuan, we have helped numerous international customers optimize their component designs for better castability and lower production costs.
