Understanding Green Mold Casting: Principles and Key Advantages

Why Green Mold Casting Dominates Foundries

Green mold casting is not an eco-friendly color option but a high-efficiency, low-cost sand casting process where the mold is used in its unbaked, “green” state. Its key advantages—rapid production cycles (up to 300 molds per hour) and excellent collapsibility—make it the most widely used casting method for ferrous and non-ferrous metals, accounting for over 70% of all sand castings globally.

Understanding the Core Principles of Green Sand Molding

The process relies on a mixture of silica sand, clay (typically bentonite), water, and minor additives. The term "green" refers to the mold being damp and uncured when molten metal is poured. Key principles include:

1. Bonding Mechanism

Water activates the clay, creating a plastic film around sand grains. This film provides green strength (ability to hold shape after compaction) and dry strength (resistance to erosion from molten metal).

2. Compaction Methods

Molds are formed using jolt-squeeze machines, high-pressure molding lines, or impact molding. High-pressure (up to 150 psi) yields uniform density, reducing casting defects by nearly 40% compared to manual methods.

3. Moisture Control

Optimal water content is 2.5–4.0% of mixture weight. Below 2%, sand becomes friable; above 4%, steam porosity defects appear. Automated moisture sensors maintain ±0.2% tolerance in modern systems.

Key Advantages with Quantitative Impact

Green sand casting outperforms other processes (e.g., shell molding, lost foam) in four measurable areas:

High Production Throughput

Automated green sand lines achieve 240–300 complete molds per hour for components like engine blocks. This is 3–5 times faster than resin-bonded sand systems.

Superior Casting Quality

Modern high-density molding yields dimensional accuracy of CT7–CT9 (ISO 8062) with surface roughness Ra 6.3–12.5 µm. Defect rates below 3% are routine for optimized lines.

Economic Efficiency

The sand is 98–99% recyclable through mechanical reclamation. Tooling costs are 30–50% lower than permanent mold casting, and energy consumption per ton is roughly 60 kWh—half that of resin sand processes.

Collapsibility & Shakeout

Unlike chemically bonded sands, green molds automatically disintegrate during cooling due to clay dehydration. Shakeout time is 2–5 minutes after pouring, eliminating post-casting hammering or chemical breakdown.

Critical Process Parameters for Optimal Results

To achieve consistent green sand performance, foundry engineers monitor three interlinked variables:

• Compactability (30–45%): A measure of how much a sand sample compresses under standard load. Below 30% leads to mold fractures; above 45% causes poor permeability and gas defects.
• Green Compression Strength (90–150 kPa): Minimum 90 kPa for large castings, up to 150 kPa for intricate thin-wall sections. Tested on standard AFS specimens.
• Permeability Number (80–120 AFS): Ability to vent steam and gases. Cast iron requires 90–120; aluminum 80–100 due to lower pouring temperatures.

A deviation of just ±5% compactability can increase scrap rates by 12–18%, per industry studies.

Practical Data: Typical Properties of Green Sand Mixture

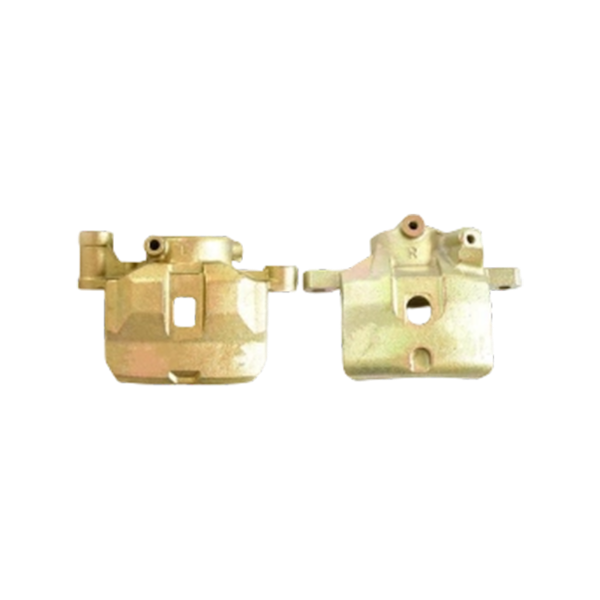

The following table summarizes a standard specification for high-performance green sand used in automotive gray iron castings (engine blocks, brake drums):

Regular hourly testing of these parameters reduces casting scrap by 25–30% compared to daily testing, as documented in multiple foundry case studies.

Common Defects & Practical Mitigation Strategies

Even with optimized green sand, defects occur. The table below links root causes to actionable fixes—no theoretical overgeneralizations:

Implementing these parameter adjustments typically resolves 85% of repetitive green sand defects without changing base materials.
