Gray Iron Castings: The Cornerstone of Modern Industry and Casting Art

I. Definition and Overview

Gray Cast Iron refers to a category of cast iron characterized by a graphitic microstructure consisting of flake graphite. It derives its name from the dull gray appearance of the fractured surface when the material is broken, a color caused by the presence of the graphite flakes which deflect the path of the crack. It stands as the most prolific and widely utilized cast metal in industrial manufacturing due to its unique combination of cost-efficiency and specialized physical properties.

The chemical composition primarily consists of Iron (Fe), Carbon (C: 2.5% - 4.0%), and Silicon (Si: 1.0% - 3.0%). The high silicon content is crucial as it acts as a "graphitizer," promoting the formation of graphite flakes rather than iron carbides during the cooling process. This material is the preferred choice for applications requiring structural stability, high thermal conductivity, and superior vibration control.

1. Historical Background and Evolution

• Ancient Origins: The mastery of cast iron dates back to the 5th century BC in ancient China, where it was initially used for agricultural tools and weaponry.
• The Industrial Revolution: Advances in smelting technology enabled gray iron to become the primary material for steam engines, railway components, and the structural skeletons of early industrial architecture.
• Modern Precision: In the current era, through Inoculation (the addition of late-stage nucleating agents) and micro-alloying, gray iron has evolved from a basic material to a high-performance engineering metal capable of meeting the rigorous tolerances of aerospace and automotive engineering.

2. Core Value: Why Gray Iron is Preferred

The flake graphite structure is not a defect but a functional feature that grants gray iron several mechanical advantages over other metals:

• Damping Capacity: It possesses the unique ability to absorb mechanical energy and vibrations, roughly 10 times more effectively than carbon steel.
• Thermal Conductivity: The interconnected graphite flakes act as highways for heat, allowing for rapid thermal dissipation.
• Machinability: The graphite flakes act as a solid lubricant and chip-breaker, significantly reducing tool wear during manufacturing.

3. Technical Parameter Comparison

To understand the professional positioning of gray iron, the following table compares the typical properties of Gray Iron (HT250/Class 35) against Ductile Iron and Carbon Steel:

While gray iron has lower ductility and tensile strength compared to steel or ductile iron, its superior compressive strength and vibration damping make it the technically superior choice for engine blocks, machine tool bases, and brake rotors.

II. Microstructure and Classification

The engineering performance of Gray Iron Castings is fundamentally dictated by its internal architecture. Unlike steel, which is relatively homogeneous, gray iron is a composite-like material where the graphite morphology and the metallic matrix interact to determine the final mechanical properties.

1. Graphite Morphology: The Flake Structure

The defining characteristic of gray iron is the presence of Flake Graphite. According to international standards like ASTM A247, these flakes are categorized based on their distribution and size:

• Type A (Uniform Distribution): The most desirable structure for general engineering. It provides the best balance of mechanical properties and is achieved through proper inoculation.
• Type B (Rosette Pattern): Typically found in thin sections or where cooling rates are slightly higher; it can lead to lower strength than Type A.
• Type D & E (Interdendritic): Resulting from rapid cooling or poor inoculation, these structures can lead to "soft spots" or inconsistent hardness.

2. The Metallic Matrix: Ferrite vs. Pearlite

The "background" metal surrounding the graphite flakes determines the hardness and wear resistance of the casting:

• Ferritic Matrix: Consists of pure iron; it is soft, highly machinable, but possesses lower strength.
• Pearlitic Matrix: A fine mixture of ferrite and iron carbide. A fully Pearlitic Gray Iron is the industry standard for high-strength applications like engine blocks, as it offers superior wear resistance and higher tensile strength.

3. Classification Standards and Grades

Gray iron is primarily classified by its minimum tensile strength rather than its chemical composition, as the cooling rate of the casting significantly affects the outcome. Below is a comparison of common grades used in global manufacturing:

4. Factors Influencing Microstructure

Achieving the correct grade requires precise control over two main variables:

• Carbon Equivalent (CE): Calculated as CE=%C+3%Si+%P​. A lower CE generally increases tensile strength but makes the iron harder to cast.
• Cooling Rate: Thicker sections cool slower, promoting larger graphite flakes and a softer ferritic matrix, while thin sections cool faster, potentially creating White Iron (hard carbides) if not managed.

III. Physical and Mechanical Properties

The widespread adoption of Gray Iron Castings is due to a unique suite of properties that are often superior to more expensive alloys in specific industrial environments. These characteristics are directly derived from the presence of flake graphite within the metallic matrix.

1. Superior Damping Capacity

Perhaps the most prized mechanical attribute of gray iron is its vibration damping capacity. The graphite flakes act as internal "voids" or friction points that absorb mechanical energy and dissipate it as heat. This prevents harmonic resonance and reduces noise.

• Industrial Impact: This makes gray iron the essential material for machine tool beds, ensuring that high-speed cutting tools remain stable and precise without being affected by motor vibrations.

2. Excellent Machinability

Gray iron is renowned for being one of the easiest metals to machine. This is attributed to two factors:

• Chip Formation: The graphite flakes effectively break the continuity of the metal, causing chips to break off in small, manageable pieces rather than long, dangerous strings.
• Self-Lubrication: As the cutting tool passes through the material, graphite is released, acting as a dry lubricant that reduces friction and extends the life of the cutting tool.

3. Thermal Conductivity and Heat Resistance

Gray iron exhibits high thermal conductivity compared to other cast irons and many steels. Because graphite is an excellent conductor of heat, gray iron castings can distribute thermal loads evenly, reducing the risk of localized hotspots and thermal warping.

• Thermal Fatigue: Its ability to withstand repeated heating and cooling cycles makes it ideal for components like brake rotors and cylinder heads.

4. Wear Resistance and Compressive Strength

While gray iron is relatively weak in tension, it is exceptionally strong in compression. Its compressive strength is typically 3 to 4 times higher than its tensile strength. Furthermore, the graphite flakes create tiny pockets that retain oil, providing excellent scuff resistance and wear properties in lubricated sliding environments.

5. Comparative Property Data

The following table outlines the physical and mechanical constants for standard gray iron grades to assist in engineering design:

6. Limitations and Design Trade-offs

Engineers must account for the brittle nature of gray iron. It exhibits almost zero plastic deformation before failure, meaning it does not "bend" under overload—it breaks. Consequently, it is not recommended for components subject to high-impact loading or significant shock.

IV. Manufacturing Process

The production of Gray Iron Castings is a sophisticated metallurgical process that requires precise control over temperature, chemistry, and cooling rates. While the basic principles of sand casting remain the most common, modern foundries utilize advanced technology to ensure consistency and quality.

1. Melting and Chemistry Control

The process begins with melting raw materials, which typically include pig iron, steel scrap, and internal returns (recycled risers and gates). Two primary furnace types are used:

• Cupola Furnaces: Historically the most common, these tall cylindrical furnaces are efficient for high-volume production but offer less precise control over chemistry.
• Electric Induction Furnaces: The modern industry standard. They allow for rapid heating and precise adjustments to the Carbon Equivalent (CE) and alloying elements like Chromium or Copper.

2. The Crucial Step: Inoculation

Inoculation is perhaps the most critical stage in gray iron production. Just before pouring, small amounts of Ferrosilicon-based inoculants are added to the molten metal. This does not change the basic chemistry but provides "nucleation sites" for graphite to grow.

• Purpose: It prevents the formation of hard, brittle iron carbides (chill) in thin sections and promotes a uniform Type A flake graphite distribution.

3. Molding Techniques

The choice of molding method depends on the complexity of the part and the required production volume:

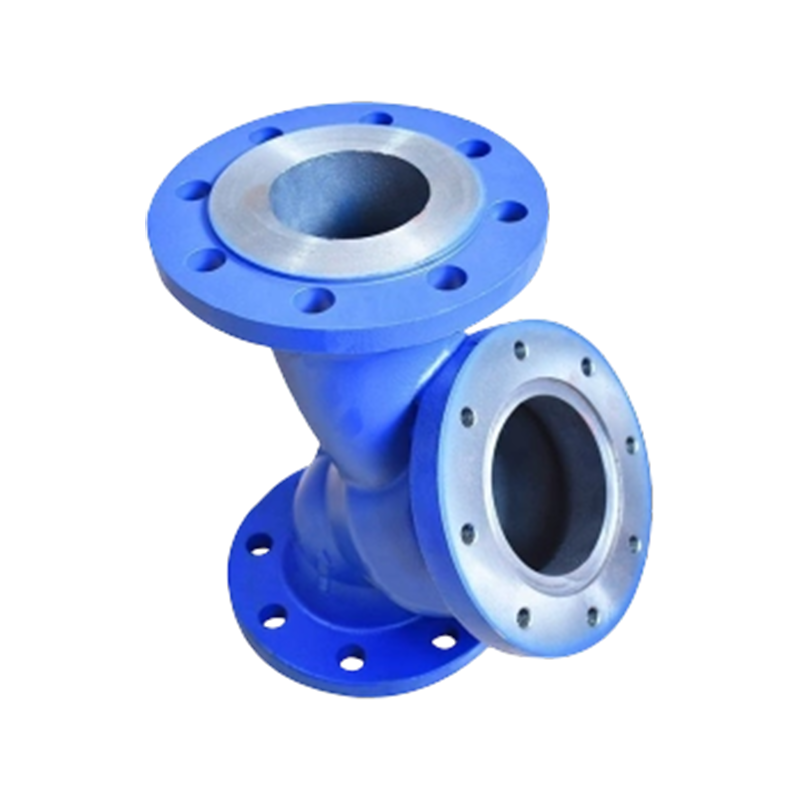

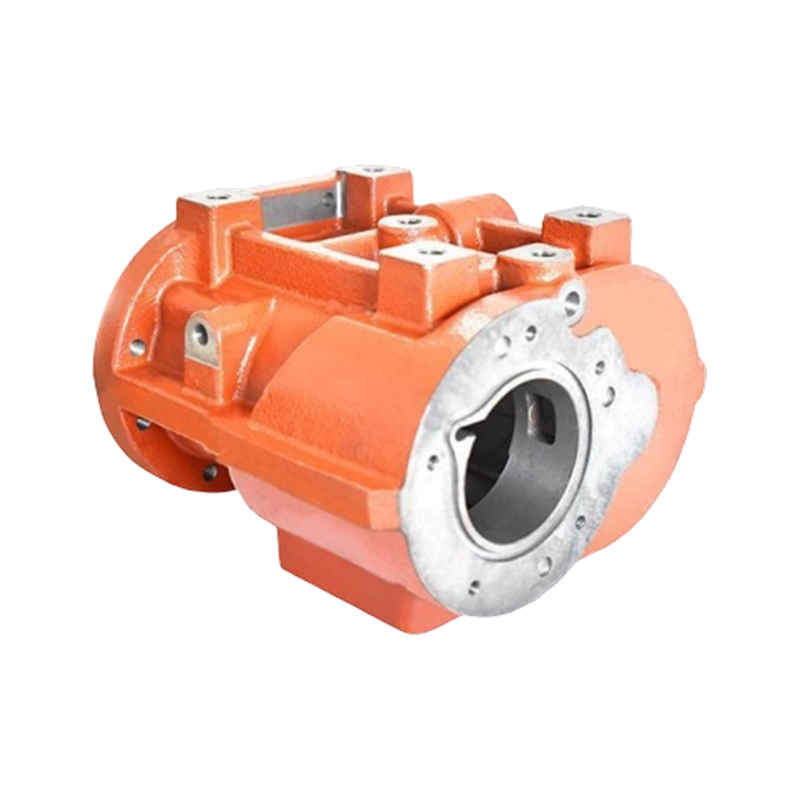

• Green Sand Casting: Uses a mixture of sand, clay, and water. It is the most cost-effective method for high-volume automotive and industrial parts.
• Resin-Bonded (No-Bake) Casting: Uses chemical binders to harden the sand. This provides superior dimensional accuracy and surface finish for large or complex castings like machine tool bases.
• Lost Foam Casting: Involves a polystyrene pattern that evaporates when contacted by molten iron, allowing for extremely complex internal geometries without the need for traditional cores.

4. Cooling and Post-Processing

The cooling rate inside the mold determines the final hardness. Large castings may remain in the sand for days to ensure slow, even cooling to prevent internal stresses. Once removed, the castings undergo:

• Shakeout: Removing the sand from the casting.
• Fettling/Grinding: Removing the gating system, risers, and any excess metal (flash).
• Stress Relieving: A heat treatment process where the casting is heated to approximately 500°C - 600°C and cooled slowly to eliminate residual stresses caused by uneven cooling.

5. Process Parameter Summary

The following table outlines the typical process parameters maintained in a professional gray iron foundry:

V. Design Considerations and Limitations

Designing for Gray Iron Castings requires a deep understanding of its unique solidification behavior. Because gray iron is a "section-sensitive" material, a design that works for steel may fail when executed in iron if internal stresses and cooling rates are not properly managed.

1. Section Thickness Sensitivity

One of the most critical factors in gray iron design is the cooling rate. Thinner sections cool faster, which can lead to the formation of iron carbides (chill), making the area brittle and impossible to machine. Conversely, very thick sections cool slowly, resulting in coarse graphite flakes and a significant reduction in tensile strength.

• Design Rule: Aim for uniform wall thicknesses whenever possible. Where transitions are necessary, use gradual tapers rather than sharp steps to avoid localized stress concentrations and "hot spots."

2. Tensile vs. Compressive Loading

As established, gray iron is remarkably strong in compression but relatively weak in tension. Professional engineering designs leverage this by:

• Placing the material under compressive loads whenever possible.
• Using ribbing and gussets to provide structural stiffness without adding excessive mass that might cause casting defects.

3. Machining Allowance and Draft Angles

To ensure a successful casting that can be finished to final dimensions, designers must incorporate specific foundry features:

• Draft Angles: A taper (typically 1° to 3°) must be applied to vertical faces of the pattern so it can be removed from the sand mold without damaging the cavity.
• Machining Allowance: Extra material (typically 3mm to 6mm) is added to surfaces that require precision finishing to ensure that the "casting skin"—which may contain minor sand inclusions—is completely removed.

4. Casting Defect Prevention

A professional design anticipates potential manufacturing hurdles. Common defects and their design-based solutions include:

5. Brittleness and Impact Resistance

Designers must strictly avoid using gray iron in applications subject to shock loading or high-velocity impacts. Because it lacks a yield point (it does not deform plastically), failure is often catastrophic and instantaneous. For such environments, an upgrade to Ductile Iron or Steel is technically mandatory.

VI. Typical Industrial Applications

The unique physical properties of Gray Iron Castings—specifically its damping capacity, thermal stability, and high compressive strength—make it indispensable across various heavy industries. Below are the primary sectors where gray iron serves as the fundamental material for critical components.

1. Automotive and Transportation

Gray iron is a cornerstone of the automotive industry, particularly in powertrain and braking systems. Despite the rise of aluminum alloys, gray iron remains dominant in heavy-duty applications due to its superior wear resistance and thermal management.

• Engine Blocks and Cylinder Heads: Provides the structural rigidity needed to withstand combustion pressures and maintains dimensional stability under high heat.
• Brake Rotors and Drums: Utilizes high thermal conductivity to dissipate heat during friction and high damping capacity to prevent "brake squeal."
• Flywheels: Benefits from the material's mass and ease of machining for precise balancing.

2. Machine Tool Industry

For precision manufacturing, stability is paramount. Gray iron is the global standard for the "skeletons" of industrial machinery.

• Machine Beds and Bases: The high damping capacity ensures that vibrations from the motor or cutting process do not translate to the workpiece, allowing for sub-micron accuracy.
• Guideways: The graphite flakes in the matrix act as a natural lubricant, reducing wear and preventing "stick-slip" motion in sliding components.

3. Pump and Valve Manufacturing

In fluid handling, gray iron is selected for its excellent castability, which allows for the creation of complex internal passages and pressure-tight housings.

• Pump Casings: Resistant to cavitation and capable of absorbing the vibrations of rotating impellers.
• Valve Bodies: Used extensively in water distribution and HVAC systems due to its low cost and sufficient pressure ratings for municipal use.

4. Municipal and Construction Engineering

Because gray iron is highly resistant to corrosion in soil and withstands extreme compressive loads, it is the primary material for infrastructure.

• Manhole Covers and Gratings: Designed to support the weight of heavy traffic while remaining cost-effective for mass production.
• Pipe Fittings: Used in drainage and sewage systems where high tensile strength is less critical than longevity and rigidity.

5. Application Comparison by Industry Grade

The following table illustrates which grade of gray iron is typically assigned to specific industrial components:

6. Agriculture and Heavy Equipment

In the agricultural sector, gray iron is used for tractor weights, transmission cases, and plow shares. Its mass-to-cost ratio makes it ideal for applications where weight is an advantage (e.g., providing traction for tractors) rather than a disadvantage.

VII. Comparison: Gray Iron vs. Other Casting Materials

In materials engineering, selecting Gray Iron is often a strategic decision based on balancing mechanical performance against production costs. To understand its true professional standing, it must be compared with its primary alternatives: Ductile Iron and White Iron.

1. Gray Iron vs. Ductile Iron (Nodular Iron)

The fundamental difference lies in the shape of the graphite. In gray iron, graphite exists as flakes, which act as internal stress risers. In ductile iron, magnesium treatment causes the graphite to form spheres (nodules).

• Toughness: Ductile iron can deform before breaking (high elongation), whereas gray iron is brittle.
• Cost: Gray iron is generally 20% to 30% cheaper to produce because it requires fewer alloy additions and less complex treatment.
• Damping: Gray iron is significantly superior at absorbing vibration; ductile iron's spherical graphite does not "disrupt" vibration waves as effectively as flakes.

2. Gray Iron vs. White Iron

While gray iron contains free graphite, white iron contains iron carbides (cementite). This difference is usually controlled by the cooling rate and silicon content.

• Hardness: White iron is extremely hard and brittle, making it nearly impossible to machine. Gray iron is soft enough for high-speed machining.
• Wear Resistance: White iron excels in high-abrasion environments (like crushing stones), while gray iron excels in sliding friction environments (like engine pistons) due to the lubricating effect of graphite.

3. Technical Performance Matrix

The following table provides a direct comparison of key engineering selection criteria across the three main types of cast iron:

4. Gray Iron vs. Cast Steel

Engineers often choose between Gray Iron and Cast Steel for large structural components. While steel has higher absolute strength, gray iron is often preferred because:

• Castability: Gray iron has a lower melting point (approx. 1150°C vs. 1500°C for steel) and better fluidity, allowing for thinner walls and more intricate details.
• Corrosion Resistance: Gray iron typically forms a protective "graphitic" layer that resists atmospheric corrosion better than plain carbon cast steel.

5. Selection Summary

Choose Gray Iron when the design priority is dimensional stability, vibration control, and low cost. Move to Ductile Iron if the part must withstand bending or shock loads, and reserve White Iron for specialized heavy-abrasion applications.

VIII. Conclusion and Future Outlook

As one of the oldest engineering materials, Gray Iron Castings continue to defy obsolescence. While newer composites and alloys have emerged, the fundamental physics of the flake graphite structure ensures that gray iron remains the most efficient solution for vibration-critical and heat-sensitive industrial applications.

1. The Enduring Legacy of Gray Iron

The survival of gray iron in the age of advanced materials is due to its unparalleled cost-to-performance ratio. No other material can be cast into such complex shapes while simultaneously providing the damping capacity required for high-precision machining and the thermal management required for high-performance braking systems.

2. Sustainability and the Circular Economy

Gray iron is a leader in industrial sustainability. Modern foundries are increasingly operating within a circular model:

• Recyclability: Gray iron is 100% recyclable. Most "new" castings are composed of up to 90% recycled steel scrap and old iron castings.
• Energy Efficiency: Due to its lower melting point compared to steel, gray iron requires significantly less energy to process, reducing the overall carbon footprint of the manufacturing cycle.

3. Technological Innovations and Modern Trends

The future of gray iron is being shaped by digital and metallurgical advancements:

• Casting Simulation Software: Advanced computer modeling allows engineers to predict cooling rates and potential defects before a single drop of metal is poured, leading to "Right First Time" manufacturing and reduced waste.
• Thin-Wall Gray Iron (TWGI): New inoculation techniques are allowing for thinner, lighter castings that maintain high strength, helping the automotive industry reduce vehicle weight without sacrificing the thermal benefits of iron engine blocks.
• Enhanced Alloying: The addition of trace elements like Molybdenum and Tin is pushing the boundaries of HT350 and higher grades, allowing gray iron to compete in environments previously reserved for steel.

4. Summary of Strategic Importance

The following table summarizes why gray iron remains a strategic choice for the future of global infrastructure and manufacturing:

In conclusion, Gray Iron Castings are not a relic of the past but a dynamic material of the future. By combining ancient casting wisdom with modern metallurgical control, gray iron continues to provide the literal and figurative foundation upon which modern industry is built.
